Features:

• Accurate humidity control
• 7” TFT color LCD display
• Various alarm function (27 events)
• Low noise hood
• Accurate weighting scale (±10g)
• Power-on Self-test: The incubator performs a self-test each time it is turned on. This process allows the incubator to check various systems for proper operation. When the test is successfully completed, the BT-500 displays the main screen
• Double Wall: The hood is used to protect an infant from the external environment and maintain the internal environment of hood to best condition. BT-500 has double wall structure to minimize heat loss
• Air Curtain: BT-500 has Air Curtain function to reduce temperature fluctuation in hood when the hood door is opened for treatment of infant

Specifications:

Humidity Control
Control Range	30 ~ 95%
Measurement Range	15~99% ±5% RH(non-condesing)
Control System	Steam(Boiling at 100°C)
Water Tank	1,000ml (Autoclavable)
Temperature Control
Air Control Range	Normal: 23.0 ~ 37.0°C Override: 37.1 ~ 39.0°C
Air Measurement range	20.0 ~ 45.0°C ±0.5°C
Skin Control Range	Normal : 35.0 ~ 37.5°C Override : 37.6 ~ 39.0°C
Skin Measurement range	25.0 ~ 45.0°C ±0.3°C
Display
7” TFT color LCD
Functions
Power On Self –Test
Quick Guide
Multi-language
Microprocessor Controlled & Double Safety Feature
Alarm Sounds for 30min when Power Outage
Trend	9~72hours (Weighing Scale 9days)
Alarm(Visual & Sound)	27 Events Alarms
Warm-up Time	Silent Mode : 60min, <45dB Normal Mode : 45min, <55dB Fast Mode : 30min, <66dB
Hood
Double Wall
X-ray Tray
Air Curtain
Mattress tilt	up to 12°
Air Filter Particle Size	0.3micron
Air Filter Efficiency	99.8%
Noise Level	< 45dB
PC Interface	RS232C
Power
Input	AC 110/220, 50/60Hz
Output	AC 110/220, 50/60Hz, Max.400VA
Consumption	950VA
Dimensions
Standard	1,024(W) x 690(D) x 1,354(H)mm
Stand Fixed / Lifting	645(H) mm / 651 ~ 851(H)mm
Mattress	730(W) x 380(D) x 27(H)mm

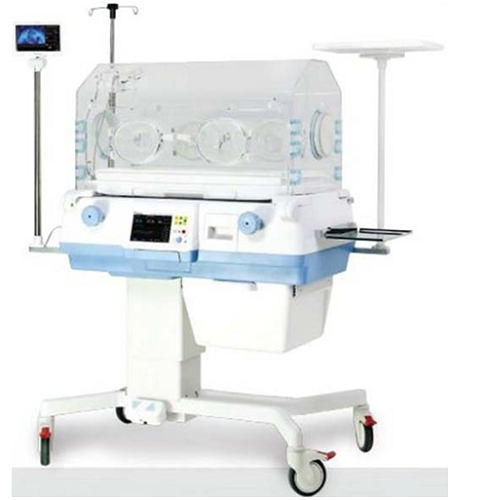

Front view of incubator:

•
  Alarm Function: Alarm of BT-500 indicates the condition of failure. According to each alarm condition, alarm messages are displayed and alarm sound is caused and sensor module’s LED blinks. There are 27 kinds of alarms by failure situation:
  1- System Alarms: Motor failed, Heater system failed, Humidity heater failed, Stuck key, Humidity sensor failure, Air sensor failure, Fan power failure, Air circulation failure, Skin probe fail, Remove skin 2 probe, Sensor module disconnected, Sensor module not in position
  2- Temperature Alarms: Low air temperature, High air temperature, Low skin temperature, High skin temperature, High skin 1 temperature, High skin 2 temperature, High temperature cutout, Over skin temperature
  3- Humidity Alarms: Low humidity, Water empty
  4- Oxygen Alarms: O2 module power failure, O2 module detached, O2 sensor fault, Low oxygen, High oxygen
  5- Weighing Scale Alarms: Too much weight



Certificates	KFDA, CE, FDA
Standard	IEC60601-1, IEC60601-1-2	IEC60601-2-19
